Product Description

HFJ11-1G01E-L12RL 10/100 Base-T 1X1 Port RJ45 Connector Price

1. PC Mainboard, SDH, PDH, IP Phone, xDSL modem
2. Application: support 10/100 Base-T
3. Through Hole type
4. Minimum 1500Vrms

HFJ11-1G01E-L12RL 10/100 Base-T 1X1 Port RJ45 Connector Price

1. Product Type Features:
1) Product Type	Connector
2) Jack Type	RJ45
3) Profile	Standard
4) PCB Mounting Orientation	Through Hole
2. Mechanical Attachment:
1) Jack Configuration	1X1
3. Electrical Characteristics:
1) Shielded	Yes
4. Termination Related Features:
1) EMI Finger	Yes
2) Termination Method	Solder
5. Body Related Features:
1) Port Configuration	Single port
2) EMI Fingers -Top and Sides	With/Without
3) Latch Orientation	Standard - Latch Down
4) PCB Tail Length	3.50±0.50mm
6. Contact Related Features:
1) Preloaded	Yes
2) Contact Termination Type	Through Hole
7. Housing Related Features:
1) Connector Style	Jack
8. Industry Standards:
1) RoHS/ELV Compliance	RoHS compliant, ELV compliant
2) Lead Free Solder Processes	Wave solder capable to 265°C
3) RoHS/ELV Compliance History	Always was RoHS compliant
9. Identification Marking:
1) Left LED Color	Green or Yellow
2) Right LED Color	Green or Yellow
10. Conditions for Usage:
1) Applies To	Printed Circuit Board
2) Environmental Conditions	Office / Premises
3) Operating Temperature (°C )	0 - 70/-40 - +85
11. Configuration Related Features
1) Magnetic Circuit	3D15
2) Status Indicator	Led
3) Decoupling Capacitor	With/Without
4) Rear PCB Ground Tab	With/Without
5) Signal Lead Quantity	8
12. Operation/Application:
1) Application	10/100 Base-T

HFJ11-1G01E-L12RL 10/100 Base-T 1X1 Port RJ45 Connector Price  Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

HFJ11-1G01E-L12RL 10/100 Base-T 1X1 Port RJ45 Connector Price Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time

As a specialized manufacturer of HFJ11-1G01E-L12RL 10/100 Base-T 1X1 Port RJ45 Connector Price and the best supplier of "Texas Instruments",We can do many parts of RJ45 connector,  cross Tyco, Pulse, Belfuse ,the parts as follows:

1840459-4
1840465-1
1840465-2
1840465-3
1840465-4
1840745-1
1840745-2
1840745-3
1840745-4
1840748-8
1-1840430-1
1-1840434-0
1-1840434-1
1840409-6
1840411-1
1840415-1
1840434-1
1840434-2
1840437-1
1840446-1
1840718-8
1840745-5
1840745-6
1840758-1
2-1840408-6
2-1840437-1
5-1840450-7
6-1840405-1
6-1840532-1
1-1840452-1
1-1840727-3
1-1840727-6
1-1840730-1
1-1840735-1
1840434-3
1840434-4
1840434-5
1840434-6
1840434-7
1840434-8
1840434-9
1840452-1
1840466-1
1840469-1
1840469-2
1840469-3
1840469-4
1840470-6
6605318-8
1840471-1
1840472-1
1840474-7
1840475-6
1840720-5
1840727-7
1840727-9
1840730-1
1840730-2
1840730-3
1840730-4
1840730-5
1840730-6
1840730-7
1840730-8
1840730-9
1840735-1
1840735-2
1840735-3
1840735-4
1-1840470-6
1-1840727-8
1-1840730-0
1-1840735-5
1-6605759-1
1840448-6
1840448-7
1840448-8
1840448-9
1840472-8
1840735-5
1840735-6
1840735-7
1840735-9
1840750-7
1840761-1
3-1840437-1
5-1840468-8
5-1840735-8
6605869-6
1-1840718-1
1-1840775-1
1-6605853-9
1840409-9
1840472-5
1840727-6
1840745-7
1840750-6
1840767-1
2-1840479-1
2-6605811-1

Payment Terms︰ TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Packing︰ 60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1320pcs) of each carton

Lead Time︰ About 5~7 Days After Received Payment

SKU︰ 1000

Standards Certificate︰ ISO 9001,ISO 14001,UL,SGS,REACH168

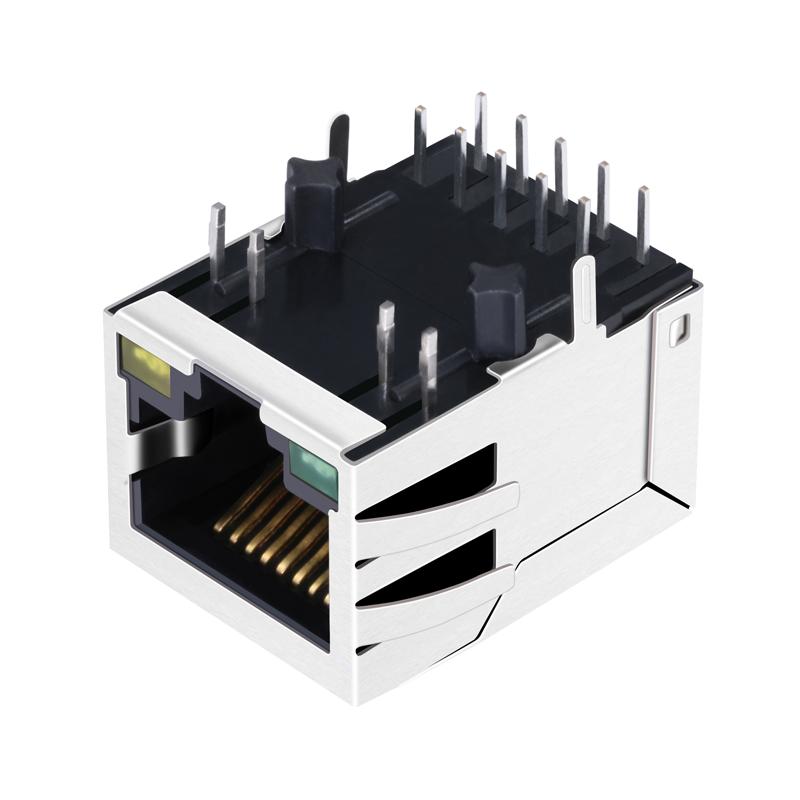

Product Image
