1840865-4 10/100 Base-T Ethernet 2x2 RJ45 Magjack Connector

1840865-4 10/100 Base-T Ethernet 2x2 RJ45 Magjack Connector

Model No.︰1840865-4

Brand Name︰LINK-PP

Country of Origin︰China

Unit Price︰-

Minimum Order︰100 pc

Inquire Now

Product Description

1840865-4 10/100 Base-T Ethernet 2x2 RJ45 Magjack Connector---LINK-PP Is The Preferred Supplier of TI Intel

1840865-4 2X2 RJ45 Connector with 10/100 Base-T Integrated Magnetics

1840865-4 10/100 Base-T Ethernet 2x2 RJ45 Magjack Connector
Tyco Part Number 1840865-4
LINK-PP Part Number LPJ27003-9A4NL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN&YELLOW/GREEN&YELLOW
Latch TAB UP/TAB DOWN
Number of Ports 2X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.015
Package Height (mm) 25.79
Package Length (Inches) 1.118
Package Length (mm) 28.40
Package Width (Inches) 1.230
Package Width (mm) 31.24
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

1840865-4 2X2 RJ45 Connector with 10/100 Base-T Integrated Magnetics

● LINK-PP Is The Preferred Supplier OfTI Samsung Siemens…

Welcome To Visit The TI Website:www.ti.com,You Will Look At Our Logo “LINK-PP” On

BeagleBone Board

1840865-4 2X2 RJ45 Connector with 10/100 Base-T Integrated Magnetics

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And

Optical Transceiver Modules

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy

100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 10 Years

•Successful Customer:Texas Instruments  Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

   Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

1840865-4 2X2 RJ45 Connector with 10/100 Base-T Integrated Magnetics

Payment Terms︰ TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Packing︰ 20 pcs in 1 tray,22 trays in 1 carton, which is 37*30*30 cm, 10KGS (440 pcs) of each carton

Lead Time︰ About 5~7 Days After Received Payment

SKU︰ 800

Standards Certificate︰ ISO 9001,ISO 14001,UL,SGS,REACH168

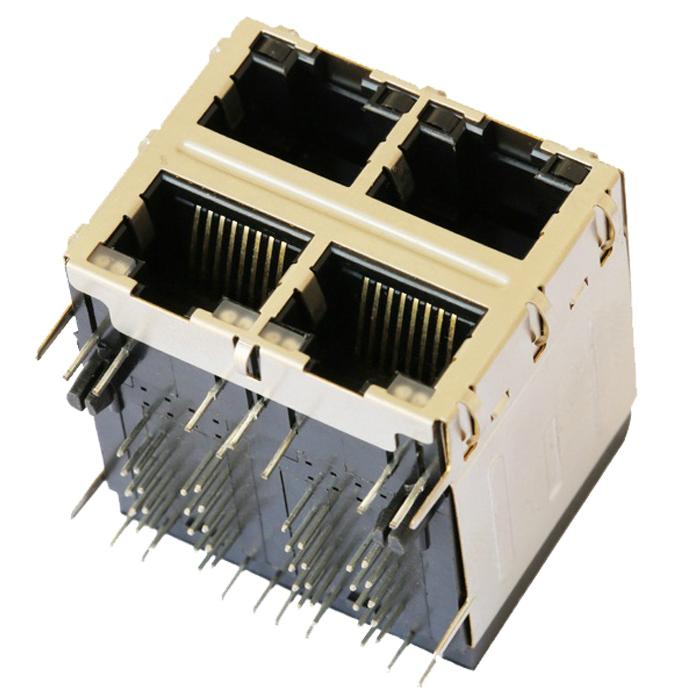

Product Image
