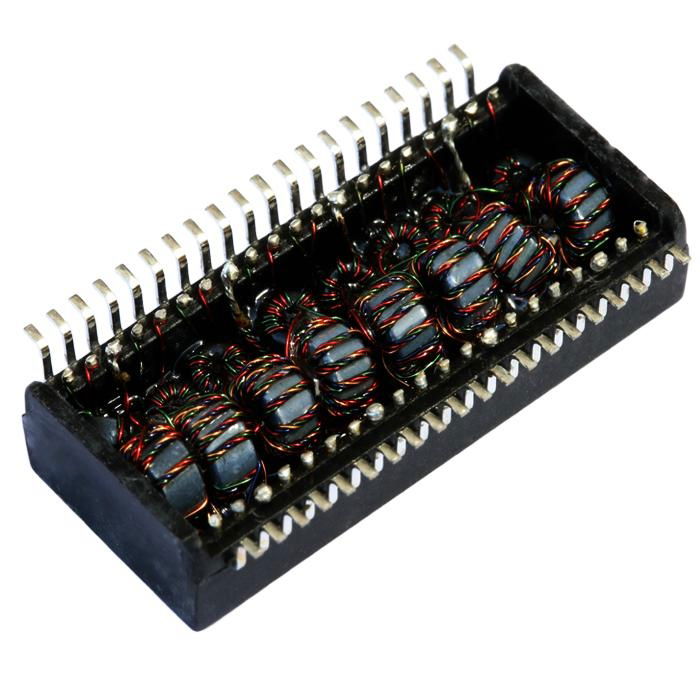

H1074NL 10/100Base-TX Quad Port Transformer Modules
|
H1074NL 10/100Base-TX Quad Port Transformer Modules
|
| Part number |
H1074NL |
| Speed |
10/100BASE-T |
| Number of Ports |
QUAD |
| Application - LAN |
ETHERNET (NON PoE) |
| Package |
SMT |
| Temperature |
0 TO 70 |
| AutomDX |
YES |
| Comment |
SAME AS NL VERSION |
| Configuration RX |
T,C,S |
| Configuration TX |
T,C,S |
| Construction |
OPEN FRAME |
| Package Height (Inches) |
0.230 |
| Package Height (mm) |
5.84 |
| Package Length (Inches) |
1.125 |
| Package Length (mm) |
28.58 |
| Package Width (Inches) |
0.640 |
| Package Width (mm) |
16.26 |
| Turns Ratio RX |
1CT:1CT |
| Turns Ratio TX |
1CT:1CT |
